0. 들어가면서

Spring Security JWT(Json Web Token) OAuth 인증 예제 포스트를 작성할 시점엔 사실 내부 동작을 정확하게 이해하지 못 했습니다. 인증 과정은 @EnableAuthorizationServer 애너테이션과 AuthorizationServerConfigurerAdapter 클래스 상속만으로 쉽게 인증과 토큰 발급이 가능하다보니 내부 프로세스에 대해 크게 관심이 없었던 것 같습니다. 최근에 이전 글들을 다시 정리하는 과정에서 Spring Security 진영이 더는 OAuth2.0 인증 서버와 관련된 기능을 제공하지 않는다는 사실을 알았습니다.

2019/11/14 - Spring Security OAuth 2.0 Roadmap Update
No Authorization Server Support

Spring Security’s Authorization Server support was never a good fit. An Authorization Server requires a library to build a product. Spring Security, being a framework, is not in the business of building libraries or products. For example, we don’t have a JWT library, but instead we make Nimbus easy to use. And we don’t maintain our own SAML IdP, CAS or LDAP products.
In 2019, there are plenty of both commercial and open-source authorization servers available. Thus, the Spring Security team has decided to no longer provide support for authorization servers.
UPDATE: We’d like to thank everyone for your feedback on the decision to not support Authorization Server. Due to this feedback and some internal discussions, we are taking another look at this decision. We’ll notify the community on any progress.

'그러면 Spring Security 프레임워크를 이용한 사용자 인증 과정은 어떻게 처리하지?'라는 의문이 들어서 관련된 내용을 찾아보았습니다. 좋은 글들이 많았지만, 필터에서 AuthenticationProvider 클래스나 UserDetailsService 인터페이스 구현체를 직접 사용하는 예제들이 대부분이었습니다. 저는 참고한 글들을 바탕으로 Spring Security 진영에서 소개했던 인증 아키텍처 방식에 맞게 구조를 변경하고 정리하였습니다.

Spring Security Authentication Process
  • Spring Security에서 인증 과정에 대한 자세한 설명을 다루고 있습니다.

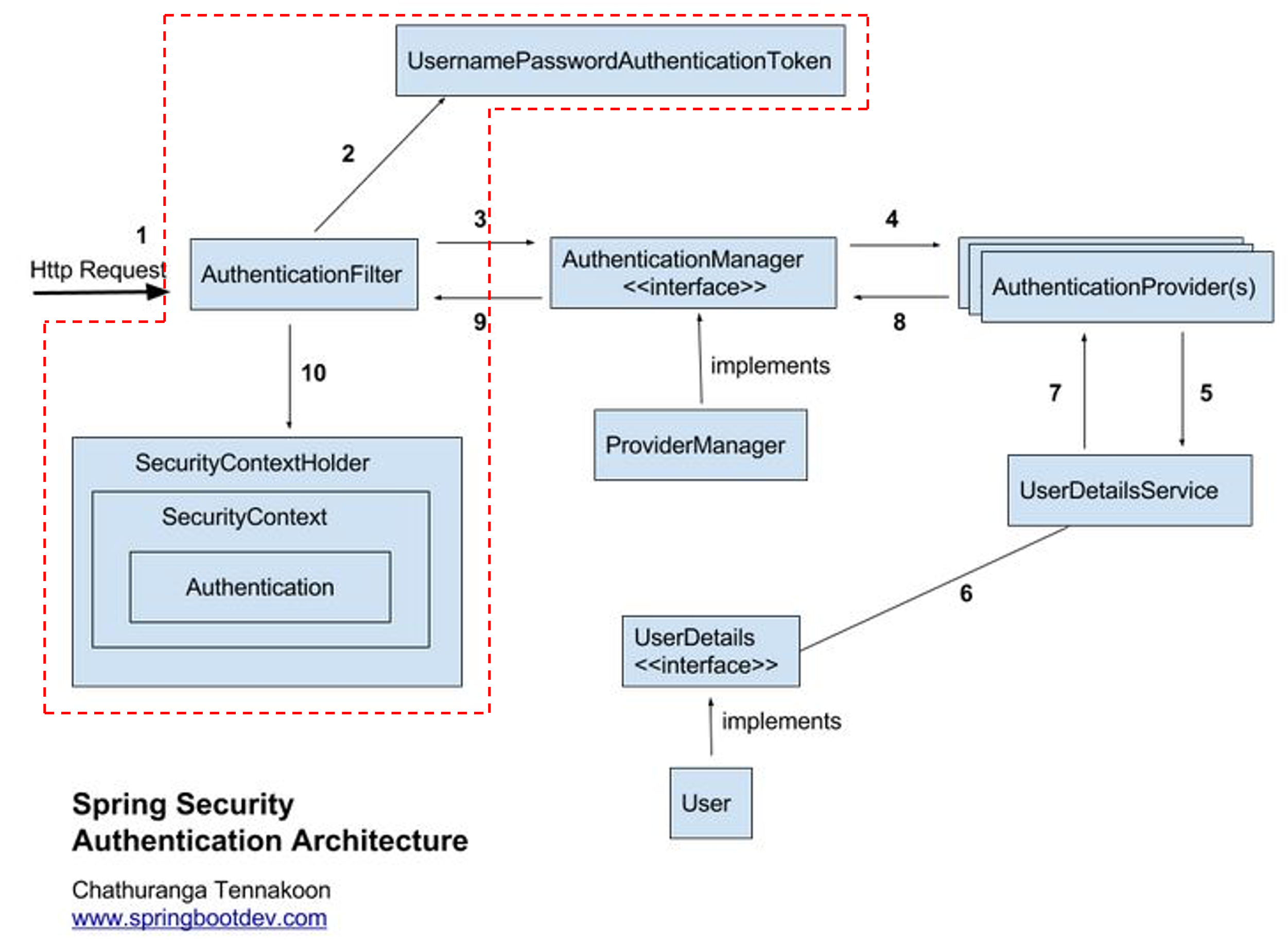

  • 아래 그림에 AuthenticationFilter 부분을 JWT(Json Web Token)을 사용한다는 가정하에 구현하였습니다.

https://springbootdev.com/2017/08/23/spring-security-authentication-architecture/

1. 패키지 구조

.
├── HELP.md
├── action-in-blog.iml
├── mvnw
├── mvnw.cmd
├── pom.xml
└── src
    ├── main
    │   ├── java
    │   │   └── action
    │   │       └── in
    │   │           └── blog
    │   │               ├── ActionInBlogApplication.java
    │   │               ├── filters
    │   │               │   └── JwtAuthenticationFilter.java
    │   │               └── security
    │   │                   ├── config
    │   │                   │   ├── JwtSecurityConfig.java
    │   │                   │   └── SecurityConfig.java
    │   │                   ├── controller
    │   │                   │   └── AuthController.java
    │   │                   ├── exception
    │   │                   │   └── JwtInvalidException.java
    │   │                   ├── provider
    │   │                   │   └── JwtAuthenticationProvider.java
    │   │                   └── tokens
    │   │                       └── JwtAuthenticationToken.java
    │   └── resources
    │       ├── application.yml
    │       ├── static
    │       └── templates
    └── test
        └── java
            └── action
                └── in
                    └── blog
                        ├── ActionInBlogApplicationTests.java
                        ├── filters
                        │   └── JwtAuthenticationFilterTest.java
                        └── security
                            └── controller
                                └── AuthControllerTest.java

24 directories, 17 files

2. 기능 구현하기

이번 포스트에선 JwtAuthenticationFilter 클래스에 초점을 맞추었으며, 일부 클래스들은 메소드 구현 부분이 비어있습니다. 다음에 이어지는 포스트를 통해 구현할 예정입니다.

2.1. JwtAuthenticationFilter 클래스

  • OncePerRequestFilter 클래스를 상속받아서 한 요청에 대해 한 번만 수행합니다.
  • 필터 내부에서 사용할 AuthenticationManager 객체를 외부로부터 전달받습니다.
  • resolveToken 메소드
    • 헤더에 Authorization 키가 존재하는지 확인합니다.
    • 인증 토큰의 인증 타입(grant type)이 Bearer 인지 확인합니다.
    • Bearer 부분을 잘라내어 토큰을 추출하여 반환합니다.
  • doFilterInternal 메소드
    • 헤더에서 추출한 토큰을 기반으로 JwtAuthenticationToken 객체를 만듭니다.
    • AuthenticationManager 객체에게 JwtAuthenticationToken 객체를 전달하여 인증을 요청합니다.
    • 인증이 성공하면 SecurityContextHolder 클래스에 담습니다.
    • 인증 과정에서 예외가 발생하면 SecurityContextHolder 클래스에 담긴 인증 정보를 제거합니다.
  • SecurityContextHolder 클래스는 별도로 설정이 없는 경우 ThreadLocal 클래스를 이용해 스레드 별로 컨텍스트를 관리합니다.
package action.in.blog.filters;

import action.in.blog.security.tokens.JwtAuthenticationToken;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.util.StringUtils;
import org.springframework.web.filter.OncePerRequestFilter;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

public class JwtAuthenticationFilter extends OncePerRequestFilter {

    public static final String AUTHORIZATION_HEADER = "Authorization";
    public static final String BEARER_PREFIX = "Bearer ";

    private final AuthenticationManager authenticationManager;

    public JwtAuthenticationFilter(AuthenticationManager authenticationManager) {
        this.authenticationManager = authenticationManager;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {

        String jwt = resolveToken(request);

        if (StringUtils.hasText(jwt)) {
            try {
                Authentication jwtAuthenticationToken = new JwtAuthenticationToken(jwt);
                Authentication authentication = authenticationManager.authenticate(jwtAuthenticationToken);
                SecurityContextHolder.getContext().setAuthentication(authentication);
            } catch (AuthenticationException authenticationException) {
                SecurityContextHolder.clearContext();
            }
        }

        filterChain.doFilter(request, response);
    }

    private String resolveToken(HttpServletRequest request) {
        String bearerToken = request.getHeader(AUTHORIZATION_HEADER);
        if (StringUtils.hasText(bearerToken) && bearerToken.startsWith(BEARER_PREFIX)) {
            return bearerToken.substring(7);
        }
        return null;
    }
}

2.2. JwtAuthenticationToken 클래스

  • 인증을 위해 AuthenticationManager 클래스에게 전달될 클래스입니다.
  • AuthenticationProvider에서 사용하기 위해 AbstractAuthenticationToken 클래스를 상속받았습니다.
package action.in.blog.security.tokens;

import org.springframework.security.authentication.AbstractAuthenticationToken;
import org.springframework.security.core.GrantedAuthority;

import java.util.Collection;

public class JwtAuthenticationToken extends AbstractAuthenticationToken {

    private String jsonWebToken;
    private Object principal;
    private Object credentials;

    public JwtAuthenticationToken(String jsonWebToken) {
        super(null);
        this.jsonWebToken = jsonWebToken;
        this.setAuthenticated(false);
    }

    public JwtAuthenticationToken(Object principal, Object credentials, Collection<? extends GrantedAuthority> authorities) {
        super(authorities);
        this.principal = principal;
        this.credentials = credentials;
        super.setAuthenticated(true);
    }

    public Object getCredentials() {
        return credentials;
    }

    public Object getPrincipal() {
        return this.principal;
    }

    public String getJsonWebToken() {
        return this.jsonWebToken;
    }
}

2.3. JwtSecurityConfig 클래스

  • SecurityConfigurerAdapter 클래스를 상속받아서 추가로 필요한 설정들을 추가할 수 있는 configure 메소드를 구현합니다.
  • AuthenticationManager 객체는 SecurityConfig 클래스로부터 주입받습니다.
  • 구현한 JwtAuthenticationFilterLogoutFilter 다음에 실행되도록 추가합니다.
package action.in.blog.security.config;

import action.in.blog.filters.JwtAuthenticationFilter;
import lombok.RequiredArgsConstructor;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.SecurityConfigurerAdapter;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.web.DefaultSecurityFilterChain;
import org.springframework.security.web.authentication.logout.LogoutFilter;

@RequiredArgsConstructor
public class JwtSecurityConfig extends SecurityConfigurerAdapter<DefaultSecurityFilterChain, HttpSecurity> {

    private final AuthenticationManager authenticationManager;

    @Override
    public void configure(HttpSecurity http) {
        JwtAuthenticationFilter filter = new JwtAuthenticationFilter(authenticationManager);
        http.addFilterAfter(filter, LogoutFilter.class);
    }
}

2.4. JwtAuthenticationProvider 클래스

  • 이번 포스트에서 구현을 하진 않지만, AuthenticationManager 클래스에 등록하기 위한 AuthenticationProvider 클래스입니다.
  • @Component 애너테이션을 붙혀 빈(bean)으로 생성합니다.
package action.in.blog.security.provider;

import lombok.extern.log4j.Log4j2;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.stereotype.Component;

@Log4j2
@Component
public class JwtAuthenticationProvider implements AuthenticationProvider {

    @Override
    public Authentication authenticate(Authentication authentication) throws AuthenticationException {
        log.warn("implement later");
        return null;
    }

    @Override
    public boolean supports(Class<?> authentication) {
        log.warn("implement later");
        return false;
    }
}

2.5. SecurityConfig 클래스

  • SecurityConfig 생성자
    • AuthenticationManagerBuilder 빈을 주입 받습니다.
    • 구현한 AuthenticationProvider 빈을 주입 받습니다.
    • AuthenticationManager에서 사용할 AuthenticationProviderAuthenticationManagerBuilder에 추가합니다.
  • configure 메소드
    • 코드 주석을 참고하시기 바랍니다.
package action.in.blog.security.config;

import action.in.blog.security.provider.JwtAuthenticationProvider;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.builders.WebSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    private final String ROLE_ADMIN = "ADMIN";
    private final String ROLE_NORMAL = "NORMAL";

    private final AuthenticationManagerBuilder authenticationManagerBuilder;

    public SecurityConfig(
            AuthenticationManagerBuilder authenticationManagerBuilder,
            JwtAuthenticationProvider jsonWebTokenProvider
    ) {
        this.authenticationManagerBuilder = authenticationManagerBuilder;
        this.authenticationManagerBuilder.authenticationProvider(jsonWebTokenProvider);
    }

    @Override
    public void configure(WebSecurity web) throws Exception {
        super.configure(web);
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                // REST API 방식이므로 CSRF 보안 토큰 생성 기능 종료
                .csrf().disable()
                // 요청 별 인증 필요 여부 혹은 권한 확인
                .authorizeRequests()
                // /auth 로 시작하는 모든 경로는 권한 확인 없이 수행 가능합니다.
                .antMatchers("/auth/**").permitAll()
                // 나머지는 인증 확인 및 역할 확인
                .anyRequest()
                .hasAnyRole(ROLE_ADMIN, ROLE_NORMAL)
                // h2-console 사용을 위한 설정
                .and()
                .headers()
                .frameOptions()
                .sameOrigin()
                // 세션을 사용하지 않도록 변경
                .and()
                .sessionManagement()
                .sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                // JWT 토큰 인증 필터 설정
                .and()
                .apply(new JwtSecurityConfig(authenticationManagerBuilder.getOrBuild()));
    }
}

2.6. AuthController 클래스

  • 테스트를 위해 간단한 컨트롤러 클래스를 만들었습니다.
package action.in.blog.security.controller;

import lombok.extern.log4j.Log4j2;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@Log4j2
@RestController
@RequestMapping("/auth")
public class AuthController {

    @PostMapping("/login")
    public void login() {
       log.warn("implement later");
    }
}

3. 테스트하기

given-when-then 이름 규칙에 맞추어 메소드를 작명하였습니다.

  • given - 이전 상황, 문맥, 조건
  • when - 행동
  • then - 결과

3.1. JwtAuthenticationFilterTest 클래스

package action.in.blog.filters;

import action.in.blog.security.exception.JwtInvalidException;
import action.in.blog.security.tokens.JwtAuthenticationToken;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.mockito.MockedStatic;
import org.mockito.Mockito;
import org.springframework.mock.web.MockHttpServletRequest;
import org.springframework.mock.web.MockHttpServletResponse;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.context.SecurityContext;
import org.springframework.security.core.context.SecurityContextHolder;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import java.io.IOException;
import java.util.Collections;

import static org.hamcrest.MatcherAssert.assertThat;
import static org.hamcrest.Matchers.equalTo;
import static org.hamcrest.Matchers.nullValue;
import static org.mockito.ArgumentMatchers.any;
import static org.mockito.Mockito.*;

public class JwtAuthenticationFilterTest {

    MockHttpServletRequest mockRequest;
    MockHttpServletResponse mockResponse;
    FilterChain mockFilterChain;
    AuthenticationManager mockAuthenticationManager;

    JwtAuthenticationFilter filter;

    @BeforeEach
    public void setup() {
        mockRequest = new MockHttpServletRequest();
        mockResponse = new MockHttpServletResponse();
        mockFilterChain = Mockito.mock(FilterChain.class);
        mockAuthenticationManager = Mockito.mock(AuthenticationManager.class);
        filter = new JwtAuthenticationFilter(mockAuthenticationManager);
    }

    @Test
    public void givenTokenNotInHeader_whenDoFilterInternal_thenAuthenticationManagerNotBeenCalled() throws ServletException, IOException {

        // setup
        when(mockAuthenticationManager.authenticate(any())).thenReturn(null);

        // action
        filter.doFilterInternal(mockRequest, mockResponse, mockFilterChain);

        // verify
        verify(mockAuthenticationManager, never()).authenticate(any());
        verify(mockFilterChain, times(1)).doFilter(mockRequest, mockResponse);
    }

    @Test
    public void givenInvalidTokenInHeader_whenDoFilterInternal_thenAuthenticationManagerNotBeenCalled() throws ServletException, IOException {

        // setup
        mockRequest.addHeader("Authorization", "invalid token");
        when(mockAuthenticationManager.authenticate(any())).thenReturn(null);

        // action
        filter.doFilterInternal(mockRequest, mockResponse, mockFilterChain);

        // verify
        verify(mockAuthenticationManager, never()).authenticate(any());
        verify(mockFilterChain, times(1)).doFilter(mockRequest, mockResponse);
    }

    @Test
    public void givenReturnNullAfterAuthenticateWithValidToken_whenDoFilterInternal_thenAuthenticationFromSecurityContextHolderIsNull() throws ServletException, IOException {

        // setup
        mockRequest.addHeader("Authorization", "Bearer valid_token");
        JwtAuthenticationToken token = new JwtAuthenticationToken("valid_token");

        when(mockAuthenticationManager.authenticate(token)).thenReturn(null);

        // action
        filter.doFilterInternal(mockRequest, mockResponse, mockFilterChain);

        // verify
        assertThat(SecurityContextHolder.getContext().getAuthentication(), nullValue());
    }

    @Test
    public void givenThrowAuthenticationException_whenDoFilterInternal_thenSecurityContextInContextHolderIsNullAndClearContextBeenCalled() throws ServletException, IOException {

        // setup
        SecurityContext securityContext = SecurityContextHolder.createEmptyContext();
        MockedStatic<SecurityContextHolder> utilities = Mockito.mockStatic(SecurityContextHolder.class);

        utilities.when(SecurityContextHolder::getContext).thenReturn(securityContext);

        mockRequest.addHeader("Authorization", "Bearer valid_token");
        JwtAuthenticationToken token = new JwtAuthenticationToken("valid_token");

        when(mockAuthenticationManager.authenticate(token)).thenThrow(new JwtInvalidException("time expired"));

        // action
        filter.doFilterInternal(mockRequest, mockResponse, mockFilterChain);

        // verify
        utilities.verify(SecurityContextHolder::clearContext, times(1));
        assertThat(SecurityContextHolder.getContext().getAuthentication(), nullValue());

        // clear static Mockito
        Mockito.clearAllCaches();
    }

    @Test
    public void givenValidToken_whenDoFilterInternal_thenSecurityContextHasAuthentication() throws ServletException, IOException {

        mockRequest.addHeader("Authorization", "Bearer valid_token");
        JwtAuthenticationToken token = new JwtAuthenticationToken("valid_token");
        JwtAuthenticationToken authenticatedToken = new JwtAuthenticationToken(
                "Junhyunny",
                "",
                Collections.singletonList(
                        () -> "ROLE_ADMIN"
                )
        );

        when(mockAuthenticationManager.authenticate(token)).thenReturn(authenticatedToken);

        // action
        filter.doFilterInternal(mockRequest, mockResponse, mockFilterChain);

        // verify
        assertThat(SecurityContextHolder.getContext().getAuthentication(), equalTo(authenticatedToken));
    }

}

3.2 AuthControllerTest 클래스

  • Spring Security 프레임워크를 통해 생성된 필터 체인이 정상적으로 동작하는지 테스트합니다.
package action.in.blog.security.controller;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.web.servlet.MockMvc;

import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.post;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@SpringBootTest
@AutoConfigureMockMvc
public class AuthControllerTest {

    @Autowired
    MockMvc mockMvc;

    @Test
    public void givenWithOutToken_whenCallLogin_thenIsOk() throws Exception {

        mockMvc.perform(
                        post("/auth/login")
                )
                .andExpect(status().isOk());
    }

    @Test
    public void givenWithoutToken_whenCallNotExistsPath_thenIsForbidden() throws Exception {

        mockMvc.perform(
                        post("/something-other")
                )
                .andExpect(status().isForbidden());
    }
}

TEST CODE REPOSITORY

REFERENCE

댓글남기기
