    Incompatible FallbackFactory 인스턴스 예외

    히스트릭스 예제를 작성하다 만난 Incompatible FallbackFactory 인스턴스 예외의 원인을 circuitbreaker 설정과 의존성에서 찾아 해결하고 깃허브에 질문한 과정을 기록했다.

    • spring-boot
    • spring-cloud
    • exception
    이 글의 목차

    1. Context of problem

    스프링 클라우드 히스트릭스에 관련된 글을 작성하면서 다음과 같은 예외(exception)를 만났다.

    Caused by: java.lang.IllegalStateException: Incompatible fallbackFactory instance. Fallback/fallbackFactory of type class cloud.in.action.proxy.BlogClientFallbackFactory is not assignable to interface org.springframework.cloud.openfeign.FallbackFactory for feign client blog-client
        at org.springframework.cloud.openfeign.FeignCircuitBreakerTargeter.getFromContext(FeignCircuitBreakerTargeter.java:83) ~[spring-cloud-openfeign-core-2.2.7.RELEASE.jar:2.2.7.RELEASE]
        at org.springframework.cloud.openfeign.FeignCircuitBreakerTargeter.targetWithFallbackFactory(FeignCircuitBreakerTargeter.java:58) ~[spring-cloud-openfeign-core-2.2.7.RELEASE.jar:2.2.7.RELEASE]
        at org.springframework.cloud.openfeign.FeignCircuitBreakerTargeter.target(FeignCircuitBreakerTargeter.java:49) ~[spring-cloud-openfeign-core-2.2.7.RELEASE.jar:2.2.7.RELEASE]
        at org.springframework.cloud.openfeign.FeignClientFactoryBean.getTarget(FeignClientFactoryBean.java:391) ~[spring-cloud-openfeign-core-2.2.7.RELEASE.jar:2.2.7.RELEASE]
        at org.springframework.cloud.openfeign.FeignClientFactoryBean.getObject(FeignClientFactoryBean.java:347) ~[spring-cloud-openfeign-core-2.2.7.RELEASE.jar:2.2.7.RELEASE]
        at org.springframework.cloud.openfeign.FeignClientsRegistrar.lambda$registerFeignClient$0(FeignClientsRegistrar.java:240) ~[spring-cloud-openfeign-core-2.2.7.RELEASE.jar:2.2.7.RELEASE]
      ...

    로그 내용을 살펴보면 BlogClientFallbackFactory 객체를 org.springframework.cloud.openfeign.FallbackFactory 인터페이스에 할당할 수 없다는 메시지를 볼 수 있다. 이번 글에선 해당 예외가 발생한 원인을 분석해보고, 이를 해결하는 방법에 대해 정리했다.

    먼저 문제 상황을 재현해보자. 설정에 맞지 않은 팩토리(factory) 클래스를 사용하면 문제가 발생한다. 다음과 같은 설정과 인터페이스를 함께 사용하면 에러가 발생한다.

    • feign.circuitbreaker.enabled 설정
    • feign.hystrix.FallbackFactory 인터페이스

    application YAML 파일에 다음과 같은 설정을 한다.

    • feign.circuitbreaker.enabled=true 설정
    feign:
      circuitbreaker:
        enabled: true
      client:
        config:
          default:
            connect-timeout: 5000
            read-timeout: 5000

    BlogClientFallbackFactory 클래스를 선언할 때 feign.hystrix 패키지의 FallbackFactory 인터페이스를 확장한 팩토리 클래스를 만들어 사용한다.

    package cloud.in.action.proxy;

    import feign.hystrix.FallbackFactory;
    import lombok.extern.log4j.Log4j2;
    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.stereotype.Component;
    import org.springframework.web.bind.annotation.GetMapping;

    @FeignClient(
            name = "blog-client",
            url = "http://b-service:8080",
            fallbackFactory = BlogClientFallbackFactory.class
    )
    public interface BlogClient {

        @GetMapping(path = "/timeout")
        String requestWithTimeoutException();

        @GetMapping(path = "/exception")
        String requestWithIntentionalException();
    }

    @Log4j2
    @Component
    class BlogClientFallbackFactory implements FallbackFactory<BlogClient> {

        @Override
        public BlogClient create(Throwable cause) {
            log.error(cause.getMessage(), cause);
            return new BlogClientFallbackPlan();
        }

        class BlogClientFallbackPlan implements BlogClient {

            @Override
            public String requestWithTimeoutException() {
                return "timeout fallback";
            }

            @Override
            public String requestWithIntentionalException() {
                return "implicit exception fallback";
            }
        }
    }

    2. Solve the problem

    circuitbreaker 설정은 내부적으로 org.springframework.cloud.openfeign.FallbackFactory 인터페이스를 상속한 팩토리 클래스를 사용하도록 구현되어 있다. org.springframework.cloud.openfeign 패키지의 FallbackFactory 인터페이스를 사용하도록 코드를 변경하면 정상적으로 동작한다.

    package cloud.in.action.proxy;

    import lombok.extern.log4j.Log4j2;
    import org.springframework.cloud.openfeign.FallbackFactory;
    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.stereotype.Component;
    import org.springframework.web.bind.annotation.GetMapping;

    @FeignClient(
            name = "blog-client",
            url = "http://b-service:8080",
            fallbackFactory = BlogClientFallbackFactory.class
    )
    public interface BlogClient {

        @GetMapping(path = "/timeout")
        String requestWithTimeoutException();

        @GetMapping(path = "/exception")
        String requestWithIntentionalException();
    }

    @Log4j2
    @Component
    class BlogClientFallbackFactory implements FallbackFactory<BlogClient> {

        @Override
        public BlogClient create(Throwable cause) {
            log.error(cause.getMessage(), cause);
            return new BlogClientFallbackPlan();
        }

        class BlogClientFallbackPlan implements BlogClient {

            @Override
            public String requestWithTimeoutException() {
                return "timeout fallback";
            }

            @Override
            public String requestWithIntentionalException() {
                return "implicit exception fallback";
            }
        }
    }

    3. Issue Report

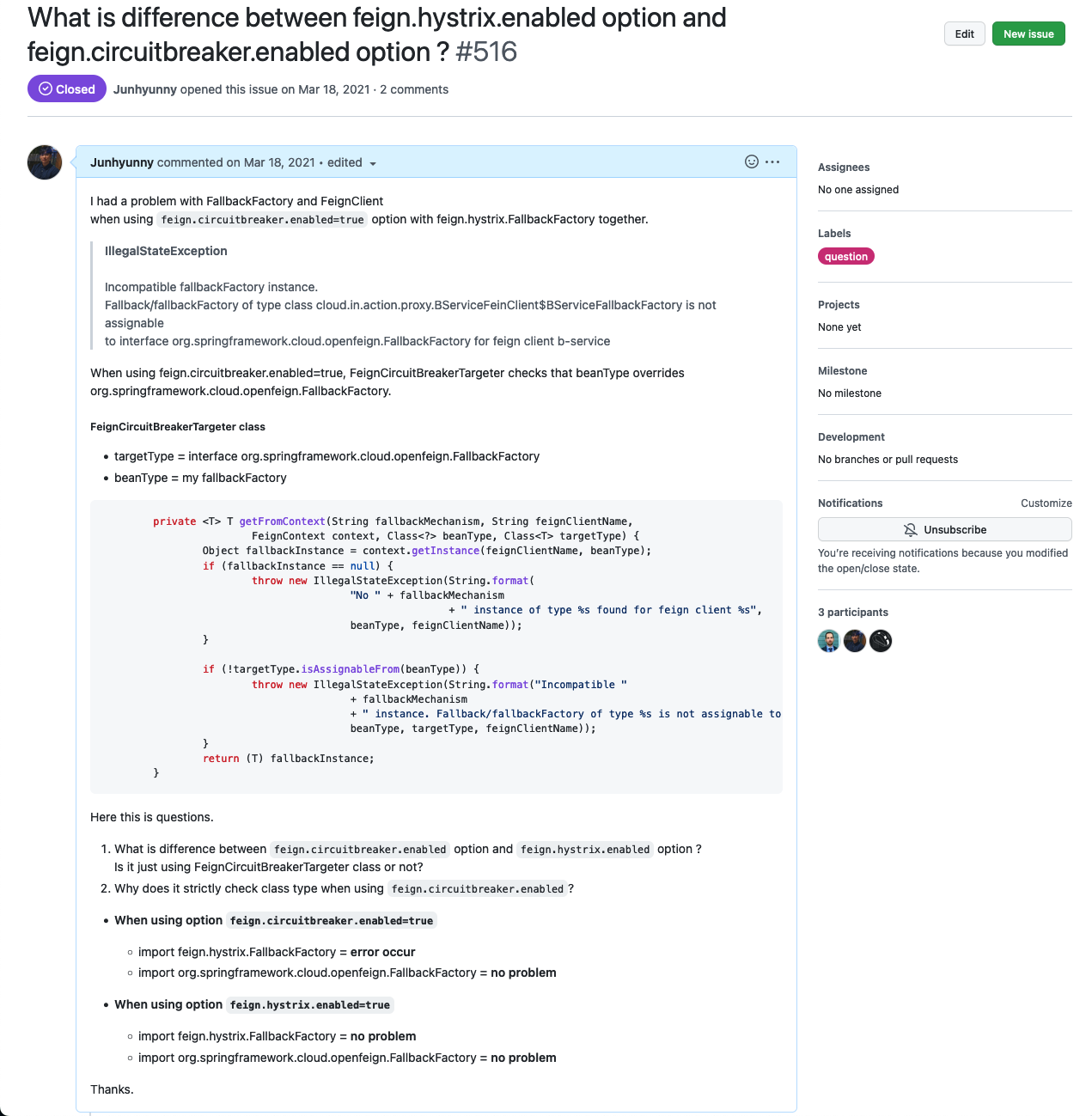

    깃허브(Github)에 관련된 질문을 올렸다.

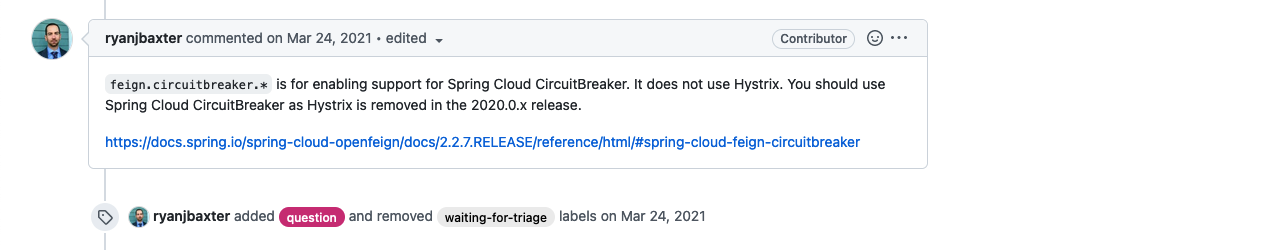

    다음과 같은 답변을 얻었다.

    feign.circuitbreaker.* is for enabling support for Spring Cloud CircuitBreaker. It does not use Hystrix. You should use Spring Cloud CircuitBreaker as Hystrix is removed in the 2020.0.x release.

    2020.0.x 릴리즈부터 Spring Cloud CircuitBreaker로 Hystrix를 대체한다고 한다. feign.circuitbreaker.* 설정을 통해 Spring Cloud CircuitBreaker 지원을 활성화하라고 한다.

    CLOSING

    스프링 클라우드 히스트릭스에 관련된 글을 다시 정리하면서 불필요한 코드나 의존성을 제거하다 보니 추가적으로 몇 가지 사실을 발견했다.

    • spring-cloud-starter-netflix-eureka-client 의존성을 사용하면 해당 문제가 발생한다.
      • Spring Cloud CircuitBreaker 의존성은 spring-cloud-starter-netflix-eureka-client를 통해 적용된다.
    • spring-cloud-starter-netflix-eureka-client 의존성을 사용하지 않으면 feign.hystrix.enabled 설정을 사용한다.
      • OpenFeign 의존성만 사용하는 경우 feign.hystrix.enabled 설정으로 회로 차단기를 활성화시킨다.
      • feign.hystrix.FallbackFactory로 팩토리를 사용한다.
