    @DataJpaTest 애너테이션과 임베디드 데이터베이스 문제

    • spring-boot
    • jpa
    • test-driven-development
    이 글의 목차

    0. 들어가면서

    이전 글에서 다뤘듯 H2 데이터베이스는 스키마 초기화를 spring.datasource.url 설정 뒷 부분에 추가해야 한다. 스키마 초기화 설정을 했을 때 서비스는 정상적으로 동작했지만, @DataJpaTest 애너테이션을 사용한 테스트들은 깨졌다. 이번 포스트에선 문제 현상, 원인, 해결 방법에 대해 정리했다.

    1. Problem Context

    우선 문제가 발생한 상황을 살펴보자. 다음과 같은 엔티티 클래스가 있다.

    • hello 스키마에 접근하기 위한 정보를 추가한다.
    package blog.in.action.hello;

    import javax.persistence.Entity;
    import javax.persistence.Id;
    import javax.persistence.Table;

    @Entity
    @Table(name = "TB_MEMBER", catalog = "hello")
    public class Member {

        @Id
        private String id;
        private String nickName;
    }

    application-local YAML 설정 파일은 다음과 같다.

    • spring.datasource.url 값에 스키마 초기화와 관련된 설정을 추가한다. HELLO, WORLD 스키마가 없는 경우 이를 생성한다.
    spring:
      datasource:
        url: jdbc:h2:mem:test;INIT=CREATE SCHEMA IF NOT EXISTS HELLO\;CREATE SCHEMA IF NOT EXISTS WORLD
        driver-class-name: org.h2.Driver
        username: sa
        password:
      jpa:
        database-platform: org.hibernate.dialect.H2Dialect
        properties:
          hibernate:
            show_sql: true
            format_sql: true
        hibernate:
          ddl-auto: create

    다음과 같은 테스트 코드가 있다. 위에서 설정한 설정 파일을 사용하기 위해 @ActiveProfiles 애너테이션을 통해 프로파일을 local로 활성화한다.

    • 간단한 count 쿼리를 실행한다.
    package blog.in.action;

    import blog.in.action.hello.MemberRepository;
    import org.junit.jupiter.api.Test;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.boot.test.autoconfigure.orm.jpa.DataJpaTest;
    import org.springframework.test.context.ActiveProfiles;

    import static org.hamcrest.MatcherAssert.assertThat;
    import static org.hamcrest.Matchers.greaterThanOrEqualTo;

    @DataJpaTest
    @ActiveProfiles("local")
    public class DatabaseReplaceTests {

        @Autowired
        MemberRepository repository;

        @Test
        void test() {
            assertThat(repository.count(), greaterThanOrEqualTo(0L));
        }
    }

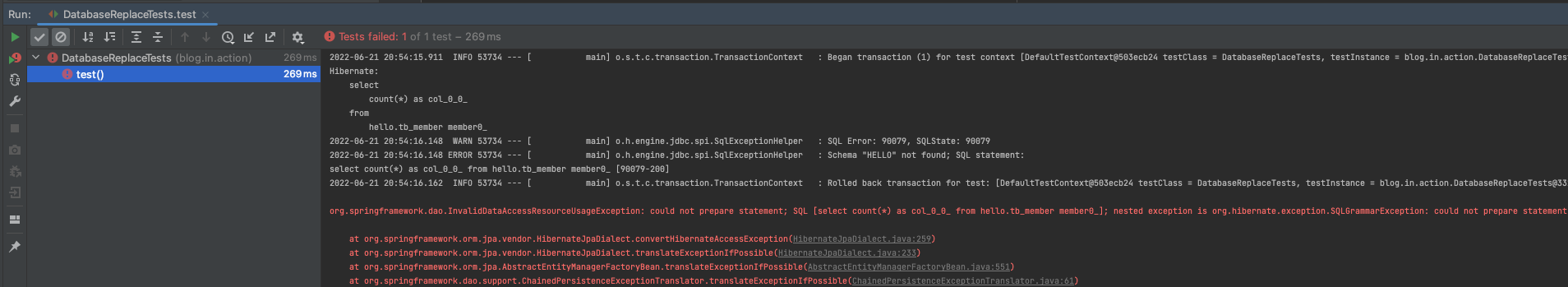

    위 테스트 코드를 실행하면 실패한다. 다음과 같은 에러가 발생한다.

    • HELLO 스키마를 찾을 수 없다는 Schema "HELLO" not found 에러 메시지가 보인다.

    2. Cause of the problem

    서비스 실행 로그를 살펴보면 문제의 원인을 유추할 수 있다.

    • 서비스 실행 로그를 보면 H2 데이터베이스에 접속하려는 시도를 확인할 수 있다. 로그의 H2 데이터베이스 접속 정보와 application-local YAML 파일 설정에 정의된 값과 다른 것을 확인할 수 있다.
      • 로그 - jdbc:h2:mem:ed441a3f-8a54-475e-ade7-34490ee1a39f;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=false
      • 설정 - jdbc:h2:mem:test;INIT=CREATE SCHEMA IF NOT EXISTS HELLO;CREATE SCHEMA IF NOT EXISTS WORLD
      .   ____          _            __ _ _
     /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
    ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
     \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
      '  |____| .__|_| |_|_| |_\__, | / / / /
     =========|_|==============|___/=/_/_/_/
     :: Spring Boot ::                (v2.6.2)

    2022-06-21 20:59:34.967  INFO 55902 --- [           main] blog.in.action.DatabaseReplaceTests      : Starting DatabaseReplaceTests using Java 11.0.13 on junhyunk-a01.vmware.com with PID 55902 (started by junhyunk in /Users/junhyunk/Desktop/workspace/blog-in-action/2022-06-21-do-not-replace-database-when-using-data-jpa-test-annotation/action-in-blog)
    2022-06-21 20:59:34.967  INFO 55902 --- [           main] blog.in.action.DatabaseReplaceTests      : The following profiles are active: local
    2022-06-21 20:59:35.243  INFO 55902 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data JPA repositories in DEFAULT mode.
    2022-06-21 20:59:35.280  INFO 55902 --- [           main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 30 ms. Found 2 JPA repository interfaces.
    2022-06-21 20:59:35.323  INFO 55902 --- [           main] beddedDataSourceBeanFactoryPostProcessor : Replacing 'dataSource' DataSource bean with embedded version
    2022-06-21 20:59:35.469  INFO 55902 --- [           main] o.s.j.d.e.EmbeddedDatabaseFactory        : Starting embedded database: url='jdbc:h2:mem:ed441a3f-8a54-475e-ade7-34490ee1a39f;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=false', username='sa'
    2022-06-21 20:59:35.763  INFO 55902 --- [           main] o.hibernate.jpa.internal.util.LogHelper  : HHH000204: Processing PersistenceUnitInfo [name: default]
    2022-06-21 20:59:35.804  INFO 55902 --- [           main] org.hibernate.Version                    : HHH000412: Hibernate ORM core version 5.6.3.Final
    2022-06-21 20:59:35.944  INFO 55902 --- [           main] o.hibernate.annotations.common.Version   : HCANN000001: Hibernate Commons Annotations {5.1.2.Final}
    2022-06-21 20:59:36.040  INFO 55902 --- [           main] org.hibernate.dialect.Dialect            : HHH000400: Using dialect: org.hibernate.dialect.H2Dialect
    ...

    application-local YAML 파일에서 설정한 데이터베이스가 아니라 엉뚱한 데이터베이스를 사용하는 이유는 @DataJpaTest 애너테이션을 사용하기 때문이다. @DataJpaTest 애너테이션은 다음과 같은 애너테이션들과 함께 테스트 환경을 구성한다.

    • @AutoConfigureTestDatabase
      • 별도 데이터베이스 설정이 없어도 테스트를 위한 내장 데이터베이스 사용
    • @Transactional
      • 매 테스트마다 자동으로 롤백 처리
    • @AutoConfigureDataJpa
      • JpaRepository 테스트를 위한 관련 컨텍스트 구성
    @Target({ElementType.TYPE})
    @Retention(RetentionPolicy.RUNTIME)
    @Documented
    @Inherited
    @BootstrapWith(DataJpaTestContextBootstrapper.class)
    @ExtendWith({SpringExtension.class})
    @OverrideAutoConfiguration(
        enabled = false
    )
    @TypeExcludeFilters({DataJpaTypeExcludeFilter.class})
    @Transactional
    @AutoConfigureCache
    @AutoConfigureDataJpa
    @AutoConfigureTestDatabase
    @AutoConfigureTestEntityManager
    @ImportAutoConfiguration
    public @interface DataJpaTest {
        String[] properties() default {};

        @PropertyMapping("spring.jpa.show-sql")
        boolean showSql() default true;

        @PropertyMapping("spring.data.jpa.repositories.bootstrap-mode")
        BootstrapMode bootstrapMode() default BootstrapMode.DEFAULT;

        boolean useDefaultFilters() default true;

        ComponentScan.Filter[] includeFilters() default {};

        ComponentScan.Filter[] excludeFilters() default {};

        @AliasFor(
            annotation = ImportAutoConfiguration.class,
            attribute = "exclude"
        )
        Class<?>[] excludeAutoConfiguration() default {};
    }

    이들 중 테스트를 위한 데이터베이스는 @AutoConfigureTestDatabase 애너테이션에 의해 결정된다. 해당 애너테이션과 관련된 코드들을 더 살펴보자.

    • 해당 애너테이션의 속성 값들은 spring.test.database 속성 값을 접두어(prefix)로 가진다.
    • replace 속성의 기본 값은 ANY이다.
    @Target({ElementType.TYPE, ElementType.METHOD})
    @Retention(RetentionPolicy.RUNTIME)
    @Documented
    @Inherited
    @ImportAutoConfiguration
    @PropertyMapping("spring.test.database")
    public @interface AutoConfigureTestDatabase {
        @PropertyMapping(
            skip = SkipPropertyMapping.ON_DEFAULT_VALUE
        )
        Replace replace() default AutoConfigureTestDatabase.Replace.ANY;

        EmbeddedDatabaseConnection connection() default EmbeddedDatabaseConnection.NONE;

        public static enum Replace {
            ANY,
            AUTO_CONFIGURED,
            NONE;

            private Replace() {
            }
        }
    }

    @AutoConfigureTestDatabase 애너테이션을 사용하면 @ImportAutoConfiguration 애너테이션이 함께 적용된다. @ImportAutoConfiguration 애너테이션을 통해 자동적으로 특정 빈(bean) 객체들이 주입된다.

    # AutoConfigureTestDatabase auto-configuration imports
    org.springframework.boot.test.autoconfigure.jdbc.AutoConfigureTestDatabase=\
    org.springframework.boot.test.autoconfigure.jdbc.TestDatabaseAutoConfiguration,\
    org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration

    이들 중 TestDatabaseAutoConfiguration bean 객체를 통해 테스트를 위한 내장 데이터베이스가 구성된다.

    • spring.test.database.replace 기본 값은 ANY 이므로 embeddedDataSourceBeanFactoryPostProcessor 빈이 등록된다.
    • embeddedDataSourceBeanFactoryPostProcessor 빈에 의해 EmbeddedDataSourceFactoryBean 빈이 등록된다.
    • EmbeddedDataSourceFactoryBean 빈의 afterPropertiesSet 메서드 수행 시점에 테스트를 위한 내장 데이터베이스 객체가 생성된다.
    • EmbeddedDataSourceFactory 클래스의 getEmbeddedDatabase 메서드를 통해 커넥션(connection) 객체와 내장 데이터베이스 객체를 생성한다.
    @Configuration(
        proxyBeanMethods = false
    )
    @AutoConfigureBefore({DataSourceAutoConfiguration.class})
    public class TestDatabaseAutoConfiguration {

        @Bean
        @Role(2)
        @ConditionalOnProperty(
            prefix = "spring.test.database",
            name = {"replace"},
            havingValue = "ANY",
            matchIfMissing = true
        )
        static EmbeddedDataSourceBeanFactoryPostProcessor embeddedDataSourceBeanFactoryPostProcessor() {
            return new EmbeddedDataSourceBeanFactoryPostProcessor();
        }

        static class EmbeddedDataSourceFactory {

            EmbeddedDatabase getEmbeddedDatabase() {
                EmbeddedDatabaseConnection connection = (EmbeddedDatabaseConnection)this.environment.getProperty("spring.test.database.connection", EmbeddedDatabaseConnection.class, EmbeddedDatabaseConnection.NONE);
                if (EmbeddedDatabaseConnection.NONE.equals(connection)) {
                    connection = EmbeddedDatabaseConnection.get(this.getClass().getClassLoader());
                }

                Assert.state(connection != EmbeddedDatabaseConnection.NONE, "Failed to replace DataSource with an embedded database for tests. If you want an embedded database please put a supported one on the classpath or tune the replace attribute of @AutoConfigureTestDatabase.");
                return (new EmbeddedDatabaseBuilder()).generateUniqueName(true).setType(connection.getType()).build();
            }
        }

        static class EmbeddedDataSourceFactoryBean implements FactoryBean<DataSource>, EnvironmentAware, InitializingBean {

            private EmbeddedDataSourceFactory factory;
            private EmbeddedDatabase embeddedDatabase;

            public void afterPropertiesSet() throws Exception {
                this.embeddedDatabase = this.factory.getEmbeddedDatabase();
            }
            ...
        }
    }

    위에서 설명한 것처럼 EmbeddedDataSourceFactory 클래스의 getEmbeddedDatabase 메서드를 통해 내장 데이터베이스 객체가 만들어진다. 코드를 살펴보면 데이터베이스 연결 정보는 EmbeddedDatabaseConnection 이넘(enum)의 get 메서드를 통해 획득한다.

    • get 메서드 코드를 보면 드라이버 클래스가 클래스 로더(class loader)에 존재하는지 확인 후 존재하면 이를 사용한다.
    public enum EmbeddedDatabaseConnection {
        NONE((EmbeddedDatabaseType)null, (String)null, (String)null, (url) -> {
            return false;
        }),
        H2(EmbeddedDatabaseType.H2, DatabaseDriver.H2.getDriverClassName(), "jdbc:h2:mem:%s;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=FALSE", (url) -> {
            return url.contains(":h2:mem");
        }),
        DERBY(EmbeddedDatabaseType.DERBY, DatabaseDriver.DERBY.getDriverClassName(), "jdbc:derby:memory:%s;create=true", (url) -> {
            return true;
        }),
        HSQLDB(EmbeddedDatabaseType.HSQL, DatabaseDriver.HSQLDB.getDriverClassName(), "org.hsqldb.jdbcDriver", "jdbc:hsqldb:mem:%s", (url) -> {
            return url.contains(":hsqldb:mem:");
        });

        private final EmbeddedDatabaseType type;
        private final String driverClass;
        private final String alternativeDriverClass;
        private final String url;
        private final Predicate<String> embeddedUrl;

        ...

        public static EmbeddedDatabaseConnection get(ClassLoader classLoader) {
            EmbeddedDatabaseConnection[] var1 = values();
            int var2 = var1.length;

            for(int var3 = 0; var3 < var2; ++var3) {
                EmbeddedDatabaseConnection candidate = var1[var3];
                if (candidate != NONE && ClassUtils.isPresent(candidate.getDriverClassName(), classLoader)) {
                    return candidate;
                }
            }

            return NONE;
        }
    }

    관련된 내용들을 구구절절 써내려갔지만, 읽는 사람들에겐 결론이 명확하지 않을 수 있다. 위 내용들은 다음과 같이 정리할 수 있다.

    1. @DataJpaTest 애너테이션으로 JPA 테스트를 수행하면 application.yml 파일에 정의된 데이터베이스 설정을 사용하지 못 한다.
    2. 원인은 @DataJpaTest 애너테이션과 함께 사용되는 @AutoConfigureTestDatabase 애너테이션 때문이다.
    3. @AutoConfigureTestDatabase 애너테이션의 replace 속성의 기본 값이 ANY이므로 내장 데이터베이스 객체를 생성하는 로직이 별도로 수행된다.
    4. 내장 데이터베이스 객체를 만들 때 필요한 커넥션 객체는 EmbeddedDatabaseConnection 이넘을 통해 획득한다.
    5. 클래스 로더에 드라이버 클래스가 존재한다면 H2 > DERBY > HSQLDB 순으로 먼저 사용한다.

    3. Solve the problem

    이를 해결하는 방법은 단순하다. @AutoConfigureTestDatabase 애너테이션의 replace 속성을 NONE으로 오버라이드한다.

    package blog.in.action;

    import blog.in.action.hello.MemberRepository;
    import org.junit.jupiter.api.Test;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.boot.test.autoconfigure.jdbc.AutoConfigureTestDatabase;
    import org.springframework.boot.test.autoconfigure.orm.jpa.DataJpaTest;
    import org.springframework.test.context.ActiveProfiles;

    import static org.hamcrest.MatcherAssert.assertThat;
    import static org.hamcrest.Matchers.greaterThanOrEqualTo;

    @DataJpaTest
    @AutoConfigureTestDatabase(replace = AutoConfigureTestDatabase.Replace.NONE)
    @ActiveProfiles("local")
    public class DatabaseReplaceTests {

        @Autowired
        MemberRepository repository;

        @Test
        void test() {
            assertThat(repository.count(), greaterThanOrEqualTo(0L));
        }
    }

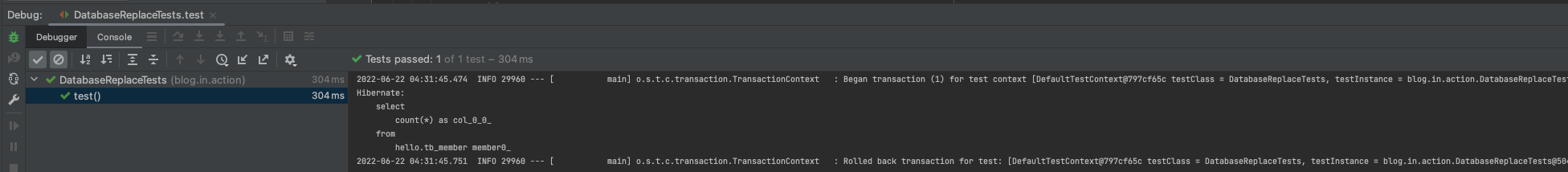

    위 테스트를 수행하면 정상적으로 테스트가 통과한다.
