Content-Type and Spring Boot Annotation

6 분 소요


0. 들어가면서

Spring 프레임워크를 사용하는 프로젝트에서 신규 API 기능을 추가하다보면 종종 아래와 같은 에러를 만납니다. 경험상 대부분 프론트엔드에서 지정한 Content-Type과 백엔드에서 받고자하는 데이터 타입이 어긋나서 발생했던 것 같습니다.

HttpMessageNotReadableException: Required request body is missing
08:19:18.788 [main] WARN org.springframework.web.servlet.mvc.support.DefaultHandlerExceptionResolver
 - Resolved [org.springframework.http.converter.HttpMessageNotReadableException: Required request body is missing: public java.lang.String action.in.blog.controller.ContentTypeController.requestBody(action.in.blog.dto.ContentTypeDto)]
HttpMediaTypeNotSupportedException: Content type ‘text/plain;charset=UTF-8’ not supported
2022-02-09 15:07:11.585  WARN 74211 --- [nio-8080-exec-8] .w.s.m.s.DefaultHandlerExceptionResolver
 : Resolved [org.springframework.web.HttpMediaTypeNotSupportedException: Content type 'text/plain;charset=UTF-8' not supported]

1. Content-Type

우선 Content-Type에 대해 알아보고, Content-Type 종류에 따른 데이터 수신 방식을 알아보겠습니다.

The Content-Type representation header is used to indicate the original media type of the resource (prior to any content encoding applied for sending).

Content-Type은 HTTP 헤더에 담겨 송수신됩니다. 메시지 바디(body)에 담긴 데이터가 어떤 타입인지 알려주는 역할로 사용됩니다. Content-Type이 없으면 수신받는 측에서 메시지를 단순한 텍스트로 판단합니다. 보통 Content-Type의 값으로 MIME(Multipurpose Internet Mail Extensions) 타입을 사용합니다.

Content-Type 일반적인 구조
  • Content-Type의 값인 MIME 타입은 타입/서브타입 형태의 데이터 구조를 가집니다.
  • Content-Type의 기본값은 text/plain 입니다.
Content-Type: type/subtype

1.1. Content-Type 필요성

1.1.1. GET 요청 방식

클라이언트가 서버로 GET 방식 HTTP 요청을 보낼 때 필요한 파라미터는 URL 뒤에 붙습니다. 이 경우 서버는 클라이언트가 Content-Type을 굳이 보내지 않더라도 URL에 포함된 key=value를 추출하여 메시지를 알아낼 수 있습니다.

GET 요청 메시지 전달 방식
http://localhost:8080?key1=value1&key2=value2

1.1.2. POST / PUT 요청 방식

POSTPUT 방식처럼 메시지 바디에 다양한 종류의 데이터를 담을 수 있는 요청은 Content-Type이 필요합니다. 상황에 따라 key=value, json이나 이진 값 같은 데이터가 들어가기 때문입니다.

POST 요청 메시지 전달 방식
POST /oauth/token HTTP/1.1
Host: localhost:8080
User-Agent: insomnia/2021.3.0
Content-Type: application/x-www-form-urlencoded
Authorization: Basic Q0xJRU5UX0lEOkNMSUVOVF9TRUNSRVQ=
Accept: */*
Content-Length: 51

username=junhyunny&password=123&grant_type=password
Content-Type 사용 시나리오

1.2. MIME, Multipurpose Internet Mail Extensions

MIME(Multipurpose Internet Mail Extensions)에 대해 알아보겠습니다.

Multipurpose Internet Mail Extensions - 다용도 인터넷 메일 확장자
MIME(영어: Multipurpose Internet Mail Extensions)는 전자 우편을 위한 인터넷 표준 포맷이다. 전자우편은 7비트 ASCII 문자를 사용하여 전송되기 때문에, 8비트 이상의 코드를 사용하는 문자나 이진 파일들은 MIME 포맷으로 변환되어 SMTP로 전송된다. 실질적으로 SMTP로 전송되는 대부분의 전자 우편은 MIME 형식이다.

Content-TypeMIME 타입은 전자 우편을 위해 정의되었지만, HTTP, SIP 같은 인터넷 프로토콜에서 전송 데이터를 표현하기 위해 사용되고 있습니다. 위에서 설명했듯이 MIME 타입의 구조는 타입/서브타입 형태를 가집니다. 간단히 어떤 종류가 있는지 알아보겠습니다.

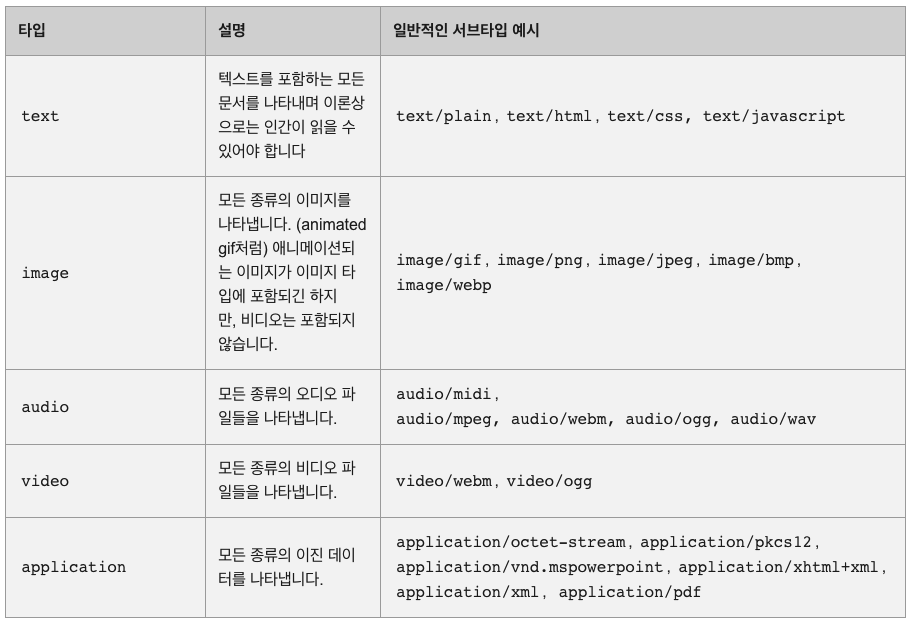

MIME 타입
  • 아래 표에는 없지만, application/json 타입이 있습니다.
  • 이 외에도 멀티파트(multipart) 타입이 있습니다.
    • 하나의 메시지 바디에 서로 다른 타입들이 들어가는 경우 사용합니다.
    • multipart/form-data
    • multipart/byreranges

https://developer.mozilla.org/ko/docs/Web/HTTP/Basics_of_HTTP/MIME_types

1.3. MIME Type in Front End Service

프론트엔드 서비스를 개발하면서 자주 만나는 데이터 요청 방식들이 어떤 MIME 타입인지 정리해보겠습니다.

1.3.1. <form></form> 태그

<form></form> 태그로 POST 요청 시 기본적으로 application/x-www-form-urlencoded 타입이 사용됩니다. application/x-www-form-urlencoded 타입은 메시지가 key=value 형태로 전달됩니다.

<form></form> 태그 POST 요청
  • submit 타입을 가지는 버튼을 폼(form) 내부에 만들어줍니다.
  • 버튼을 누르면 폼 내부에 데이터가 서버로 전달됩니다.
<form action="http://localhost:8080/nothing" method="post">
    <input type="text" name="item" placeholder="item"/>
    <button type="submit">submit</button>
</form>
<form></form> 태그 POST 요청 결과
POST /nothing HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:96.0) Gecko/20100101 Firefox/96.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: application/x-www-form-urlencoded
Content-Length: 16
Origin: http://localhost:3000
Connection: keep-alive
Referer: http://localhost:3000/

item=Hello+World
<form></form> 태그 Content-Type 변경
  • 파일을 서버로 전송하는 경우 multipart/form-data 타입을 사용해야 합니다.
  • enctype 속성을 통해 multipart/form-data으로 MIME 타입을 변경합니다.
<form action="http://localhost:8080/file" method="post" enctype="multipart/form-data">
    <input type="file" name="file">
    <button type="submit">submit</button>
</form>

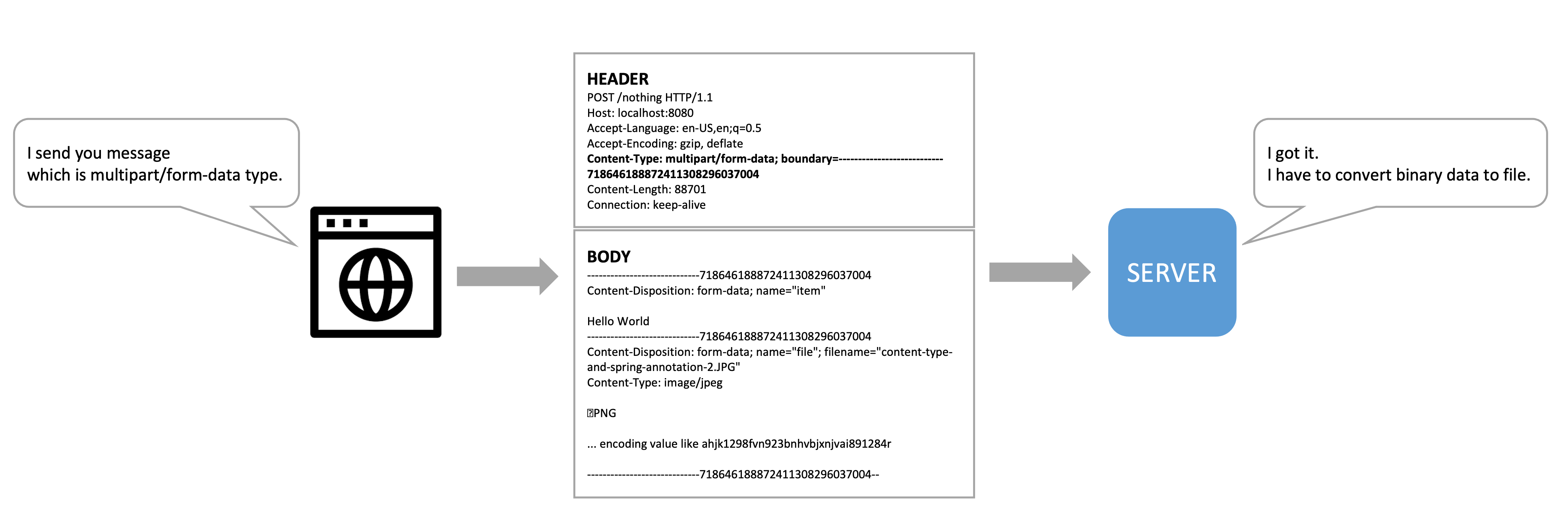

<form></form> 태그 Content-Type 변경 후 POST 요청 결과
  • “Hello World” 문자열과 JPEG 이미지 파일을 전송하였습니다.
POST /nothing HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:96.0) Gecko/20100101 Firefox/96.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: multipart/form-data; boundary=---------------------------718646188872411308296037004
Content-Length: 88701
Origin: http://localhost:3000
Connection: keep-alive
Referer: http://localhost:3000/

-----------------------------718646188872411308296037004
Content-Disposition: form-data; name="item"

Hello World
-----------------------------718646188872411308296037004
Content-Disposition: form-data; name="file"; filename="content-type-and-spring-annotation-2.JPG"
Content-Type: image/jpeg

‰PNG

... encoding value like ahjk1298fvn923bnhvbjxnjvai891284r

<x:xmpmeta xmlns:x="adobe:ns:meta/" x:xmptk="XMP Core 6.0.0">
   <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
      <rdf:Description rdf:about=""
            xmlns:exif="http://ns.adobe.com/exif/1.0/">
         <exif:PixelYDimension>623</exif:PixelYDimension>
         <exif:PixelXDimension>911</exif:PixelXDimension>
         <exif:UserComment>Screenshot</exif:UserComment>
      </rdf:Description>
   </rdf:RDF>
</x:xmpmeta>

... encoding value like jdwqjkoc9802ntu81981273hidaskjascnj

-----------------------------718646188872411308296037004--

1.3.2. fetch 함수 사용

브라우저에서 제공하는 Web APIfetch 함수는 기본 Content-Typetext/plain입니다.

fetch 함수 POST 요청
    fetch(`http://localhost:8080${path}`, {
        method: "POST",
        body: {
            item
        }
    })
        .then(response => response.text())
        .then(data => console.log(data))
        .catch(error => console.log(error));
fetch 함수 POST 요청 결과
POST /nothing HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:96.0) Gecko/20100101 Firefox/96.0
Accept: */*
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Referer: http://localhost:3000/
Content-Type: text/plain;charset=UTF-8
Origin: http://localhost:3000
Content-Length: 15
Connection: keep-alive

[object Object]

1.3.3. axios 모듈 사용

프론트엔드 서비스를 개발 시 많은 곳에서 사랑받는 axios 모듈은 기본적으로 application/json 타입이 사용됩니다.

axios 모듈 POST 요청
    axios.post(`http://localhost:8080${path}`, {item})
        .then(({data}) => console.log(data))
        .catch(error => console.log(error));
axios 모듈 POST 요청 결과
POST /request-body HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:96.0) Gecko/20100101 Firefox/96.0
Accept: application/json, text/plain, */*
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: application/json
Content-Length: 17
Origin: http://localhost:3000
Connection: keep-alive
Referer: http://localhost:3000/

{"item":"Hello World"}

3. 각 Content-Type 별 처리 가능 애너테이션 in Spring Boot

3.1. RequestMappingHandlerAdapter 클래스

Spring 프레임워크 기반의 서비스는 처음 부팅되는 시점에 Resolver 클래스들이 RequestMappingHandlerAdapter 클래스에 의해 등록됩니다. (Spring 3.0.X 버전까진 AnnotationMethodHandlerAdapter 클래스가 사용된 것으로 확인됩니다.) 이후 클라이언트(혹은 브라우저)로부터 요청을 받으면 다음과 같은 과정을 통해 메시지에 담긴 데이터를 엔드-포인트(end-point) 메소드의 파라미터로 변경합니다.

  1. 해당 요청을 처리할 엔드 포인트 메소드를 찾습니다.
  2. 해당 메소드의 파라미터 앞에 붙은 애너테이션을 지원하는 Resolver 클래스를 찾습니다.
  3. 이후 Resolver 클래스의 resolveArgument 메소드를 통해 메시지에 담긴 데이터를 엔드-포인트 메소드의 파라미터로 변경합니다.

3.2. Content-Type 별 처리 가능 애너테이션 정리

자주 사용하는 Content-Type과 이를 처리하는 애너테이션을 정리하였습니다. 간단한 테스트 코드를 통해 확인하였으며, 데이터를 받을 때 사용하는 DTO(Data Transfer Object)는 다음과 같습니다.

ContentTypeDto 클래스
package action.in.blog.dto;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.web.multipart.MultipartFile;

@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class ContentTypeDto {

    private String item;
    private MultipartFile file;
}

3.2.1. application/x-www-form-urlencoded 타입

application/x-www-form-urlencoded 타입은 key=value 형식으로 메시지를 전달합니다.

No Annotation
  • ServletModelAttributeMethodProcessor 클래스 resolveArgument 메소드에 의해 처리됩니다.
  • 애너테이션이 없는 경우 @ModelAttribute 애너테이션과 동일합니다.
  • 키(key)와 동일한 이름을 가지는 클래스 필드(field)에 값이 매칭됩니다.
    @PostMapping("/nothing")
    public String nothing(ContentTypeDto contentTypeDto) {
        System.out.println(contentTypeDto);
        return "Data what server get via /nothing path: " + contentTypeDto;
    }
@ModelAttribute Annotation
  • ServletModelAttributeMethodProcessor 클래스 resolveArgument 메소드에 의해 처리됩니다.
  • 키(key)와 동일한 이름을 가지는 클래스 필드(field)에 값이 매칭됩니다.
    @PostMapping("/model-attribute")
    public String modelAttribute(@ModelAttribute ContentTypeDto contentTypeDto) {
        System.out.println(contentTypeDto);
        return "Data what server get via /model-attribute path: " + contentTypeDto;
    }
@RequestParam Annotation
  • RequestParamMethodArgumentResolver 클래스를 이용하지만, resolveArgument 메소드가 오버라이딩되어 있지 않습니다.
  • 부모인 AbstractNamedValueMethodArgumentResolver 클래스의 resolveArgument 메소드에 의해 처리됩니다.
  • key=value 형식이므로 @RequestParam 애너테이션을 통해 데이터를 받을 수 있습니다.
    @PostMapping("/request-param")
    public String requestParam(@RequestParam("item") String item, @RequestParam(value = "file", required = false) MultipartFile multipartFile) {
        System.out.println(item);
        System.out.println(multipartFile);
        return "Data what server get via /request-param path: " + item + ", file: " + multipartFile;
    }
@RequestBody Annotaion and MultiValueMap class
  • RequestResponseBodyMethodProcessor 클래스 resolveArgument 메소드에 의해 처리됩니다.
  • @RequestBody 애너테이션은 주로 application/json 타입을 처리할 때 사용하지만, MultiValueMap 클래스와 함께 사용하면 application/x-www-form-urlencoded 타입 처리가 가능합니다.
    @PostMapping("/request-body-with-multi-value-map")
    public String requestBody(@RequestBody MultiValueMap<String, Object> multiValueMap) {
        System.out.println(multiValueMap);
        return "Data what server get via /request-body-with-multi-value-map path: " + multiValueMap;
    }

3.2.2. multipart/form-data 타입

파일 전달은 multipart/form-data 타입을 사용합니다. 어떤 애너테이션을 통해 해결되는지 확인해보겠습니다.

No Annotation
  • ServletModelAttributeMethodProcessor 클래스 resolveArgument 메소드에 의해 처리됩니다.
  • 애너테이션이 없는 경우 @ModelAttribute 애너테이션과 동일합니다.
  • 키(key)와 동일한 이름을 가지는 클래스 필드(field)에 값이 매칭됩니다.
    @PostMapping("/nothing")
    public String nothing(ContentTypeDto contentTypeDto) {
        System.out.println(contentTypeDto);
        return "Data what server get via /nothing path: " + contentTypeDto;
    }
@ModelAttribute Annotation
  • ServletModelAttributeMethodProcessor 클래스 resolveArgument 메소드에 의해 처리됩니다.
  • 키(key)와 동일한 이름인 Dto 클래스의 필드(field)에 데이터가 매칭됩니다.
    @PostMapping("/model-attribute")
    public String modelAttribute(@ModelAttribute ContentTypeDto contentTypeDto) {
        System.out.println(contentTypeDto);
        return "Data what server get via /model-attribute path: " + contentTypeDto;
    }
@RequestParam Annotation
  • RequestParamMethodArgumentResolver 클래스를 이용하지만, resolveArgument 메소드가 오버라이딩되어 있지 않습니다.
  • 부모인 AbstractNamedValueMethodArgumentResolver 클래스의 resolveArgument 메소드에 의해 처리됩니다.
  • key=value 형식이므로 @RequestParam 애너테이션을 통해 데이터를 받을 수 있습니다.
    @PostMapping("/request-param")
    public String requestParam(@RequestParam("item") String item, @RequestParam(value = "file", required = false) MultipartFile multipartFile) {
        System.out.println(item);
        System.out.println(multipartFile);
        return "Data what server get via /request-param path: " + item + ", file: " + multipartFile;
    }

3.2.3. application/json 타입

REST API 요청 시 주로 사용하는 application/json 타입은 어떤 애너테이션을 통해 처리되는지 확인해보겠습니다.

@RequestBody Annotaion
  • RequestResponseBodyMethodProcessor 클래스 resolveArgument 메소드에 의해 처리됩니다.
  • json 객체의 키와 동일한 이름인 Dto 클래스의 필드에 데이터가 매칭됩니다.
  • @RequestBody 애너테이션과 MultiValueMap 클래스를 함께 사용하는 경우 application/json 타입 처리가 불가능합니다.
    @PostMapping("/request-body")
    public String requestBody(@RequestBody ContentTypeDto contentTypeDto) {
        System.out.println(contentTypeDto);
        return "Data what server get via /request-body path: " + contentTypeDto;
    }
