Flyway CLI를 활용한 데이터베이스 마이그레이션
- database
- flyway
이 글의 목차
1. Flyway
Schema Migration에서 이야기했듯이 스키마 마이그레이션 작업은 도구를 사용하는 것이 좋다. Flyway는 Liquibase와 같은 대표적인 오픈 소스 데이터베이스 마이그레이션 도구이다. 데이터베이스의 변경 사항을 추적하고 스키마 변경이나 롤백을 쉽게 도와준다. 깃(git)이 코드 형상 관리 도구라면 Flyway는 데이터베이스 변경에 대한 형상 관리를 지원한다.
다음과 같은 환경에서 사용할 수 있는 API를 제공한다.
- Command Line
- Docker
- Maven
- Gradle
CLI 환경에서 Flyway를 사용하는 방법에 대해 정리하였다.
1.1. Commands
주로 사용하는 명령어들은 다음과 같다.

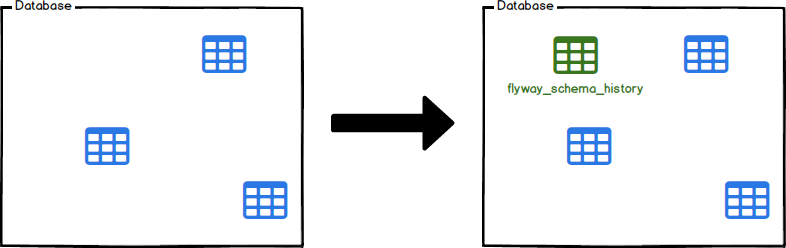

- baseline
- 현재 데이터베이스 스키마 상태를 시작점으로 새로운 버전 이력을 쌓는다.
- 새로운 기준점 이전의 마이그레이션은 모두 무시한다.
- 마이그레이션 이력 테이블을 생성한다.

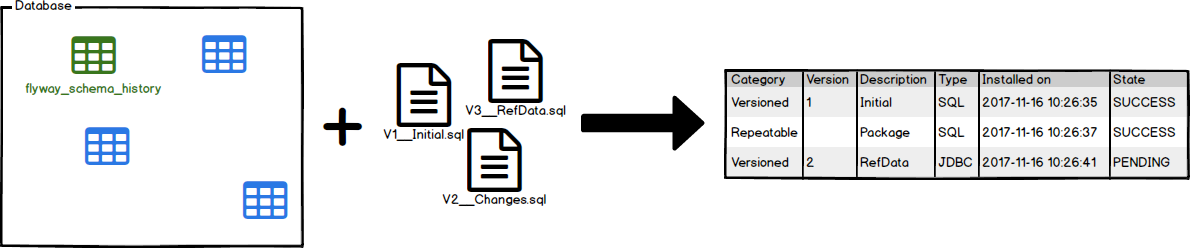

- info
- 현재까지의 마이그레이션 작업 이력에 대한 정보를 보여준다.
- 로컬에 저장된 적용되지 않은 마이그레이션 스크립트 파일에 대한 정보를 보여준다.

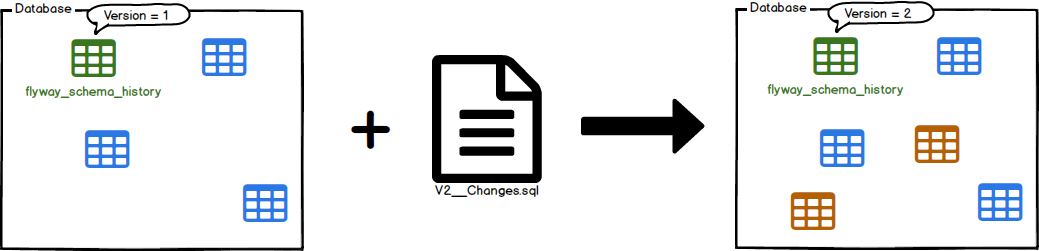

- migrate
- 가장 큰 버전을 가진 스크립트까지 스키마 마이그레이션 작업을 수행한다.
- 변경 작업에 대한 내용을 마이그레이션 이력 테이블에 저장한다.

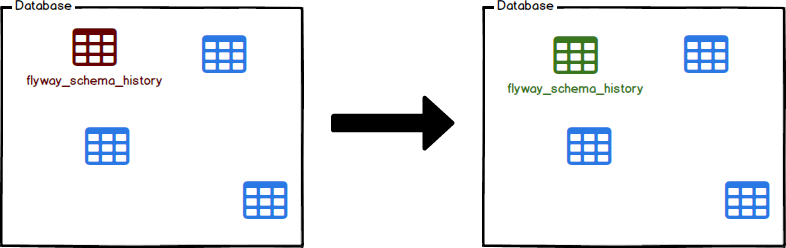

- repair
- 실패한 마이그레이션 이력을 대기(pending) 상태로 변경한다.
- 이전에 수행된 마이그레이션 스크립트가 없어진 경우 이력 테이블의 해당 마이그레이션 상태를 삭제(delete)로 변경한다.
- 이전에 수행된 마이그레이션 스크립트가 변경된 경우 이력 테이블의 해당 체크섬(checksum)을 업데이트한다.

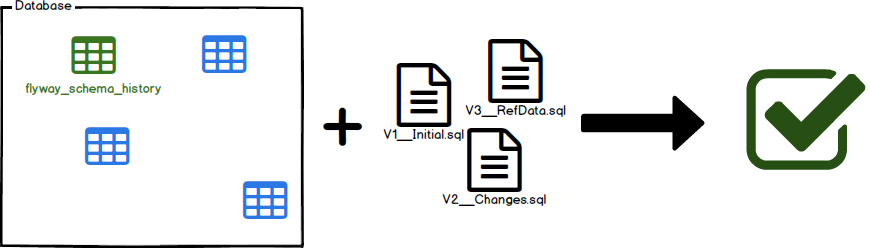

- validate
- 마이그레이션 이력 테이블 상태와 로컬에 저장된 마이그레이션 스크립트 상태를 비교한다.

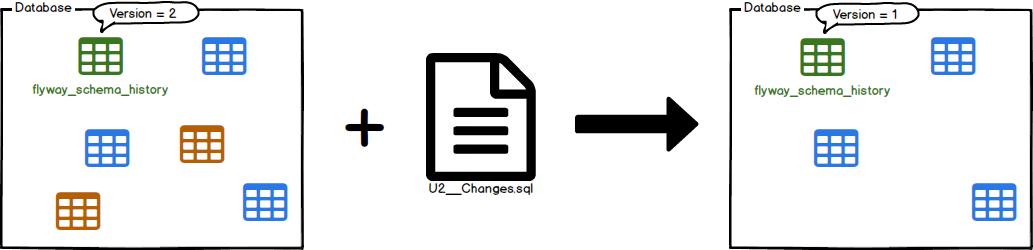

- undo
- Teams(유료 버전)부터 사용 가능하다.
- 이전 상태로 롤백한다.

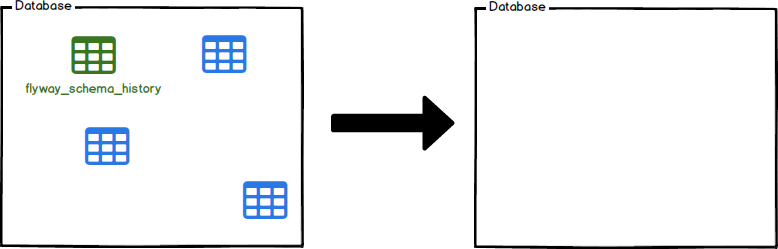

- clean
- 마이그레이션 이력 테이블과 함께 데이터베이스의 모든 테이블을 드랍(drop)한다.
- 운영 환경에서 사용되지 않도록 주의가 필요하다.

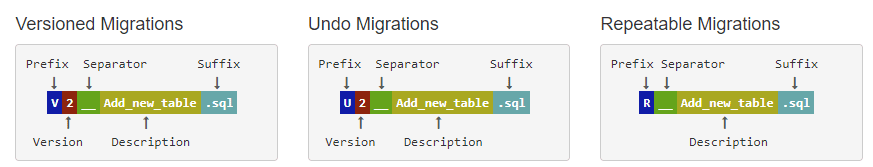

1.2. Migration Script Naming Rule
마이그레이션 스크립트 이름은 다음과 같은 규칙을 따라 작성한다.
- 스크립트 종류를 접두어(prefix)로 구분한다.
- V - 버전 마이그레이션 파일
- U - 롤백 마이그레이션 파일
- R - 반복 수행 마이그레이션 파일
- 접두어 뒤에 버전 정보를 추가한다.
- V, U 마이그레이션 파일에만 추가한다.
- 1, 1.0, 1.0.1, 20230823(날짜) 등의 포맷을 자유롭게 사용 가능하지만, 반드시 순서를 지정할 수 있어야 한다.
- 구분자는 __(언더바 2개)를 사용한다.
- 구분자는 접두어 혹은 버전과 설명(description) 사이를 구분한다.
- _(언더바 1개)는 단어를 띄어쓰는 용도로 사용한다.
- 마이그레이션 스크립트가 어떤 동작을 수행하는지 간략한 설명(description)을 작성한다.
- 접미어는 .sql 확장자를 사용한다.
2. Practice
맥북(mac book)에서 실습을 진행하였다. 프로젝트 구조는 다음과 같다.
./
├── docker-compose.yml
├── flyway.conf
├── migration
│ └── V1.0.0__create_user.sql
├── report.html
├── report.json
├── seed
│ └── R__insert_users_repeatable.sql
├── temp
│ ├── V1.0.1__alerter_user_add_colum_email.sql
│ └── V1.0.3__alerter_user_add_colum_address.sql
└── undo
└── V1.0.2__undo_V1.0.1.sql
2.1. Install
홈브루(homebrew)를 통해 쉽게 설치가 가능하다.
$ brew install flyway
$ flyway -v
Flyway Community Edition 9.21.1 by Redgate
Plugin Name | Version | Licensed
--------------------- | --------------- | --------
SqlFluffRulesEngine | not installed | Licensed
2.2. Setup Database
실습을 위한 컨테이너 데이터베이스를 준비한다. 도커 컴포즈(docker compose)를 사용한다.
version: "3.8"
services:
mysql:
image: mysql:latest
container_name: mysql-container
ports:
- 3306:3306
environment:
- MYSQL_ROOT_PASSWORD=password!1234
- MYSQL_DATABASE=junhyunny-db
$ docker-compose up -d
[+] Running 1/0
✔ Container mysql-container Running
2.3. Flyway Configuration
Flyway는 다음과 같은 경로에 작성된 설정 파일을 사용한다.
- installDir/conf/flyway.conf
- Flyway 설치 경로
- userhome/flyway.conf
- 사용자 홈 경로
- workingDir/flyway.conf
- 프로젝트 경로
이번 실습은 프로젝트 경로의 flyway.conf 파일을 사용하였다. 설정 파일에 다음과 같은 정보를 작성한다.
- 데이터베이스 접속 정보
- 마이그레이션 파일 경로
flyway.url=jdbc:mysql://localhost:3306/junhyunny-db?allowPublicKeyRetrieval=true&useSSL=false
flyway.user=root
flyway.password=password!1234
flyway.locations=filesystem:migration,filesystem:seed
2.4. Initialize
다음과 같은 마이그레이션 스크립트들을 먼저 적용한다.
- V1.0.0__create_user
CREATE TABLE IF NOT EXISTS `junhyunny-db`.`tb_user`(
`id` BIGINT NOT NULL AUTO_INCREMENT,
`name` VARCHAR(255) NOT NULL,
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARACTER SET = utf8mb4
COLLATE = utf8mb4_0900_ai_ci;
- R__insert_users_repeatable
insert into `junhyunny-db`.`tb_user` (name) values ('junhyunny');
insert into `junhyunny-db`.`tb_user` (name) values ('jua');
빈 데이터베이스 상태에서 info 명령어를 수행한다.
- 설정 파일에서 지정한 migration, seed 경로에 저장된 스크립트만 적용 대상이다.
- 각 파일의 종류, 버전, 설명이 표시되며 두 파일 모두 현재 대기 상태이다.
$ flyway info
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Schema history table `junhyunny-db`.`flyway_schema_history` does not exist yet
Schema version: << Empty Schema >>
+------------+---------+-------------------------+------+--------------+---------+----------+
| Category | Version | Description | Type | Installed On | State | Undoable |
+------------+---------+-------------------------+------+--------------+---------+----------+
| Versioned | 1.0.0 | create user | SQL | | Pending | No |
| Repeatable | | insert users repeatable | SQL | | Pending | |
+------------+---------+-------------------------+------+--------------+---------+----------+
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
migrate 명령어를 수행한다.
- 설정 파일에서 지정한 데이터베이스에 마이그레이션을 수행한다.
$ flyway migrate
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Schema history table `junhyunny-db`.`flyway_schema_history` does not exist yet
Successfully validated 2 migrations (execution time 00:00.019s)
Creating Schema History table `junhyunny-db`.`flyway_schema_history` ...
Current version of schema `junhyunny-db`: << Empty Schema >>
Migrating schema `junhyunny-db` to version "1.0.0 - create user"
Migrating schema `junhyunny-db` with repeatable migration "insert users repeatable"
Successfully applied 2 migrations to schema `junhyunny-db`, now at version v1.0.0 (execution time 00:00.037s)
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
데이터베이스 정보를 확인한다.
- 두 개의 테이블이 생성된다.
- flyway_schema_history 테이블
- 마이그레이션 이력 테이블이다.
- tb_user 테이블
- 마이그레이션 작업을 통해 생성된 테이블이다.
- flyway_schema_history 테이블
- 마이그레이션 이력 테이블에 마이그레이션 작업 이력이 저장된다.
- 마이그레이션에 사용된 스크립트에 대한 정보가 체크섬으로 저장된다.
- 사용자 테이블에 사용자 정보가 저장된다.
- R__insert_users_repeatable 파일에 작성한 스크립트에 의해 데이터가 저장된다.
- 반복 수행 스크립트는 한번만 적용되지만, 파일에 변경이 발생하여 체크섬이 바뀌면 다시 실행된다.
mysql> show tables;
+------------------------+
| Tables_in_junhyunny-db |
+------------------------+
| flyway_schema_history |
| tb_user |
+------------------------+
2 rows in set (0.01 sec)
mysql> select * from flyway_schema_history;
+----------------+---------+-------------------------+------+--------------------------------+------------+--------------+---------------------+----------------+---------+
| installed_rank | version | description | type | script | checksum | installed_by | installed_on | execution_time | success |
+----------------+---------+-------------------------+------+--------------------------------+------------+--------------+---------------------+----------------+---------+
| 1 | 1.0.0 | create user | SQL | V1.0.0__create_user.sql | 777397927 | root | 2023-08-23 19:52:11 | 26 | 1 |
| 2 | NULL | insert users repeatable | SQL | R__insert_users_repeatable.sql | -392104774 | root | 2023-08-23 19:52:11 | 11 | 1 |
+----------------+---------+-------------------------+------+--------------------------------+------------+--------------+---------------------+----------------+---------+
2 rows in set (0.00 sec)
mysql> select * from tb_user;
+----+-----------+
| id | name |
+----+-----------+
| 1 | junhyunny |
| 2 | jua |
+----+-----------+
2 rows in set (0.00 sec)
2.5. Fail and Repair
다음과 같은 스키마 변경 작업 파일을 추가한다.
- V1.0.1__alerter_user_add_colum_email
ALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN email VARCHAR(50) NOT NULL;
- V1.0.3__alerter_user_add_colum_address
- 일부러 오타로 작성하여 마이그레이션을 실패를 유도한다.
AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL;
마이그레이션을 진행한다.
- 1.0.3 버전의 마이그레이션이 실패한다.
$ flyway migrate
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Successfully validated 4 migrations (execution time 00:00.028s)
Current version of schema `junhyunny-db`: 1.0.0
Migrating schema `junhyunny-db` to version "1.0.1 - alerter user add colum email"
Migrating schema `junhyunny-db` to version "1.0.3 - alerter user add colum address"
ERROR: Migration of schema `junhyunny-db` to version "1.0.3 - alerter user add colum address" failed! Please restore backups and roll back database and code!
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
ERROR: Migration V1.0.3__alerter_user_add_colum_address.sql failed
-----------------------------------------------------------
SQL State : 42000
Error Code : 1064
Message : (conn=155) You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL' at line 1
Location : migration/V1.0.3__alerter_user_add_colum_address.sql (/Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/migration/V1.0.3__alerter_user_add_colum_address.sql)
Line : 1
Statement : AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL
Caused by: Migration V1.0.3__alerter_user_add_colum_address.sql failed
-----------------------------------------------------------
SQL State : 42000
Error Code : 1064
Message : (conn=155) You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL' at line 1
Location : migration/V1.0.3__alerter_user_add_colum_address.sql (/Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/migration/V1.0.3__alerter_user_add_colum_address.sql)
Line : 1
Statement : AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL
Caused by: java.sql.SQLSyntaxErrorException: (conn=155) You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL' at line 1
Caused by: org.mariadb.jdbc.internal.util.exceptions.MariaDbSqlException: You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL' at line 1
Caused by: java.sql.SQLException: You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'AALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN address VARCHAR(50) NOT NULL' at line 1
현재까지 진행된 마이그레이션 상태를 확인한다.
- 1.0.1 버전 마이그레이션은 성공이다.
- 1.0.3 버전 마이그레이션은 실패 상태이다.
$ flyway info
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Schema version: 1.0.3
+------------+---------+--------------------------------+------+---------------------+---------+----------+
| Category | Version | Description | Type | Installed On | State | Undoable |
+------------+---------+--------------------------------+------+---------------------+---------+----------+
| Versioned | 1.0.0 | create user | SQL | 2023-08-23 19:52:11 | Success | No |
| Repeatable | | insert users repeatable | SQL | 2023-08-23 19:52:11 | Success | |
| Versioned | 1.0.1 | alerter user add colum email | SQL | 2023-08-23 20:04:21 | Success | No |
| Versioned | 1.0.3 | alerter user add colum address | SQL | 2023-08-23 20:04:21 | Failed | No |
+------------+---------+--------------------------------+------+---------------------+---------+----------+
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
마이그레이션 이력 테이블 데이터를 살펴보면 다음과 같다.
- 두 개의 마이그레이션 스크립트에 대한 체크섬 정보 모두 데이터베이스에 저장된다.
- 1.0.1 버전 마이그레이션은 성공이다.
- 1.0.3 버전 마이그레이션은 실패 상태이다.
mysql> select * from flyway_schema_history;
+----------------+---------+--------------------------------+------+--------------------------------------------+-------------+--------------+---------------------+----------------+---------+
| installed_rank | version | description | type | script | checksum | installed_by | installed_on | execution_time | success |
+----------------+---------+--------------------------------+------+--------------------------------------------+-------------+--------------+---------------------+----------------+---------+
| 1 | 1.0.0 | create user | SQL | V1.0.0__create_user.sql | 777397927 | root | 2023-08-23 19:52:11 | 26 | 1 |
| 2 | NULL | insert users repeatable | SQL | R__insert_users_repeatable.sql | -392104774 | root | 2023-08-23 19:52:11 | 11 | 1 |
| 3 | 1.0.1 | alerter user add colum email | SQL | V1.0.1__alerter_user_add_colum_email.sql | 2058811609 | root | 2023-08-23 20:04:21 | 24 | 1 |
| 4 | 1.0.3 | alerter user add colum address | SQL | V1.0.3__alerter_user_add_colum_address.sql | -1536911564 | root | 2023-08-23 20:04:21 | 13 | 0 |
+----------------+---------+--------------------------------+------+--------------------------------------------+-------------+--------------+---------------------+----------------+---------+
4 rows in set (0.00 sec)
1.0.3 버전 마이그레이션 스크립트를 정상적으로 수정하고 migrate 명령어를 수행하면 다음과 같은 에러가 발생한다. repair 명령어를 수행하고 마이그레이션을 재수행한다.
- 이전에 실패한 이력 때문에 마이그레이션을 진행하지 않는다.
- repair 명령어를 통해 실패한 이력을 대기 상태로 변경한다.
$ flyway migrate
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
ERROR: Validate failed: Migrations have failed validation
Detected failed migration to version 1.0.3 (alerter user add colum address).
Please remove any half-completed changes then run repair to fix the schema history.
Need more flexibility with validation rules? Learn more: https://rd.gt/3AbJUZE
$ flyway repair
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Successfully repaired schema history table `junhyunny-db`.`flyway_schema_history` (execution time 00:00.039s).
Manual cleanup of the remaining effects of the failed migration may still be required.
$ flyway migrate
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Successfully validated 4 migrations (execution time 00:00.028s)
Current version of schema `junhyunny-db`: 1.0.1
Migrating schema `junhyunny-db` to version "1.0.3 - alerter user add colum address"
Successfully applied 1 migration to schema `junhyunny-db`, now at version v1.0.3 (execution time 00:00.024s)
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
2.6. Using Lower Version Script
버전이 낮은 마이그레이션 스크립트를 작성한다.
- V1.0.2__undo_V1.0.1
ALTER TABLE `junhyunny-db`.`tb_user` DROP COLUMN email;
info 명령어를 통해 상태를 확인한다.
- 새로 추가된 1.0.2 버전의 스크립트 파일은 무시(ignored)된다.
- 마지막으로 버전보다 높은 버전의 스크립트만 적용된다.
$ flyway info
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Schema version: 1.0.3
+------------+---------+--------------------------------+------+---------------------+---------+----------+
| Category | Version | Description | Type | Installed On | State | Undoable |
+------------+---------+--------------------------------+------+---------------------+---------+----------+
| Versioned | 1.0.0 | create user | SQL | 2023-08-23 19:52:11 | Success | No |
| Repeatable | | insert users repeatable | SQL | 2023-08-23 19:52:11 | Success | |
| Versioned | 1.0.1 | alerter user add colum email | SQL | 2023-08-23 20:04:21 | Success | No |
| Versioned | 1.0.3 | alerter user add colum address | SQL | 2023-08-23 20:12:34 | Success | No |
| Versioned | 1.0.2 | undo V1.0.1 | SQL | | Ignored | No |
+------------+---------+--------------------------------+------+---------------------+---------+----------+
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
2.7. Change Migrated Script
1.0.2 버전 스크립트 파일을 1.0.4 버전으로 변경 후 작업을 수행한다. 마이그레이션을 진행하기 전에 이전에 사용한 마이그레이션 스크립트를 변경한다.
- V1.0.1__alerter_user_add_colum_email
- NOT NULL 키워드를 제거한다.
ALTER TABLE `junhyunny-db`.`tb_user` ADD COLUMN email VARCHAR(50);
migrate 명령어 수행이 실패한다.
- Flyway는 이미 적용된 스크립트 파일을 관리한다.
- 마이그레이션 이력 테이블의 체크섬과 비교하여 스크립트 파일의 변경을 감지한다.
$ flyway migrate
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
ERROR: Validate failed: Migrations have failed validation
Migration checksum mismatch for migration version 1.0.1
-> Applied to database : 2058811609
-> Resolved locally : 1679405429
Either revert the changes to the migration, or run repair to update the schema history.
Need more flexibility with validation rules? Learn more: https://rd.gt/3AbJUZE
프로젝트 상황에 맞게 해당 에러를 수정한다.
- 스크립트 파일을 이전 상태로 복구한다.
- repair 명령어를 통해 마이그레이션 이력 테이블의 체크섬을 최신화한다.
$ flyway repair
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Repair of failed migration in Schema History table `junhyunny-db`.`flyway_schema_history` not necessary. No failed migration detected.
Repairing Schema History table for version 1.0.1 (Description: alerter user add colum email, Type: SQL, Checksum: 1679405429) ...
Successfully repaired schema history table `junhyunny-db`.`flyway_schema_history` (execution time 00:00.039s).
$ flyway migrate
Database: jdbc:mysql://localhost:3306/junhyunny-db (MySQL 8.1)
Successfully validated 5 migrations (execution time 00:00.027s)
Current version of schema `junhyunny-db`: 1.0.3
Migrating schema `junhyunny-db` to version "1.0.4 - undo V1.0.1"
Successfully applied 1 migration to schema `junhyunny-db`, now at version v1.0.4 (execution time 00:00.024s)
A Flyway report has been generated here: /Users/junhyunk/Desktop/workspace/blog/blog-in-action/2023-08-23-flyway-cli-for-database-migration/action-in-blog/report.html
데이터베이스 정보를 확인한다.
- 마이그레이션 이력 테이블에 undo 이력이 추가된다.
- 데이터베이스 컬럼이 삭제된다.
mysql> select * from flyway_schema_history;
+----------------+---------+--------------------------------+------+--------------------------------------------+-------------+--------------+---------------------+----------------+---------+
| installed_rank | version | description | type | script | checksum | installed_by | installed_on | execution_time | success |
+----------------+---------+--------------------------------+------+--------------------------------------------+-------------+--------------+---------------------+----------------+---------+
| 1 | 1.0.0 | create user | SQL | V1.0.0__create_user.sql | 777397927 | root | 2023-08-23 19:52:11 | 26 | 1 |
| 2 | NULL | insert users repeatable | SQL | R__insert_users_repeatable.sql | -392104774 | root | 2023-08-23 19:52:11 | 11 | 1 |
| 3 | 1.0.1 | alerter user add colum email | SQL | V1.0.1__alerter_user_add_colum_email.sql | 1679405429 | root | 2023-08-23 20:04:21 | 24 | 1 |
| 4 | 1.0.3 | alerter user add colum address | SQL | V1.0.3__alerter_user_add_colum_address.sql | 1950309165 | root | 2023-08-23 20:12:34 | 24 | 1 |
| 5 | 1.0.4 | undo V1.0.1 | SQL | V1.0.4__undo_V1.0.1.sql | -1021114786 | root | 2023-08-23 20:24:06 | 24 | 1 |
+----------------+---------+--------------------------------+------+--------------------------------------------+-------------+--------------+---------------------+----------------+---------+
5 rows in set (0.00 sec)
mysql> select * from tb_user;;
+----+-----------+---------+
| id | name | address |
+----+-----------+---------+
| 1 | junhyunny | |
| 2 | jua | |
+----+-----------+---------+
2 rows in set (0.01 sec)
CLOSING
커뮤니티 버전은 롤백 기능이 제공되지 않는다. 커뮤니티 버전에서 문제가 발생했을 때 대처를 위한 롤백 전략이 필요해 보인다.
TEST CODE REPOSITORY
REFERENCE
- https://documentation.red-gate.com/fd/why-database-migrations-184127574.html
- https://documentation.red-gate.com/fd/quickstart-how-flyway-works-184127223.html
- https://documentation.red-gate.com/fd/commands-184127446.html
- https://documentation.red-gate.com/fd/configuration-files-184127472.html
- https://www.red-gate.com/blog/database-devops/flyway-naming-patterns-matter
광고
KEEP READING
함께 읽으면 좋은 글
DISCUSSION
